Moved Contact JUC 203 GC5 630A 1250A For Vacuum Circuit Breaker use from JUCRO Electric

Moved Contact JUC 203 GC5 630A 1250A  For Vacuum Circuit Breaker use from JUCRO Electric

Quantity

Product Detail

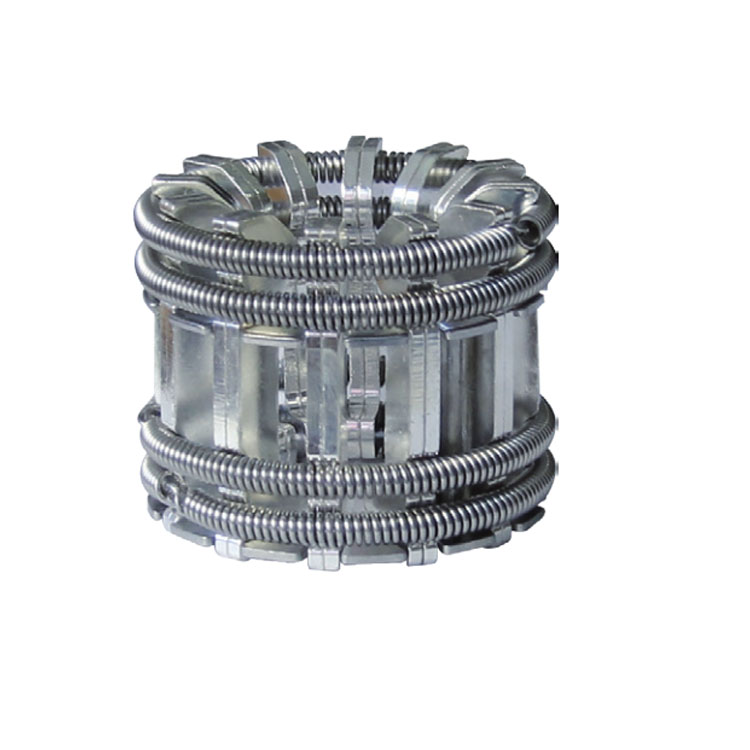

Moved Contact JUC 203 GC5 630A 1250A  For Vacuum Circuit Breaker use from JUCRO Electric


Technical Specification

Tulip Contact/Jaw Contact/Moved Contact/Female Contact/Movable Contact For Vacuum Circuit Breaker

The Moved contact series is used in indoor vacuum circuit breakers and is the core conductive switching element in vacuum circuit breakers.



Model

GC5-630/1250A

Ordering number

JUC-203

Contact finger number

18/24 pieces

Material

Red copper / Strainless steel spring



Tulip Contact/Jaw Contact/Moved Contact/Female Contact/Movable Contact

HS Code

853890000

Copper grade

T2

Conductivity IACS %

99.8%

Hardness

89.7

Chemical composition

Cu+Ag99.98

Silver coating thickness

8-17.5μm

Ambient temperature

-50~ +150

Contact surface roughness

Ra:3.2

Spring material

Non-magnetic Ring-shaped, avoid the eddy


No comment

Product Detail

Moved Contact JUC 203 GC5 630A 1250A  For Vacuum Circuit Breaker use from JUCRO Electric


Technical Specification

Tulip Contact/Jaw Contact/Moved Contact/Female Contact/Movable Contact For Vacuum Circuit Breaker

The Moved contact series is used in indoor vacuum circuit breakers and is the core conductive switching element in vacuum circuit breakers.



Model

GC5-630/1250A

Ordering number

JUC-203

Contact finger number

18/24 pieces

Material

Red copper / Strainless steel spring



Tulip Contact/Jaw Contact/Moved Contact/Female Contact/Movable Contact

HS Code

853890000

Copper grade

T2

Conductivity IACS %

99.8%

Hardness

89.7

Chemical composition

Cu+Ag99.98

Silver coating thickness

8-17.5μm

Ambient temperature

-50~ +150

Contact surface roughness

Ra:3.2

Spring material

Non-magnetic Ring-shaped, avoid the eddy
