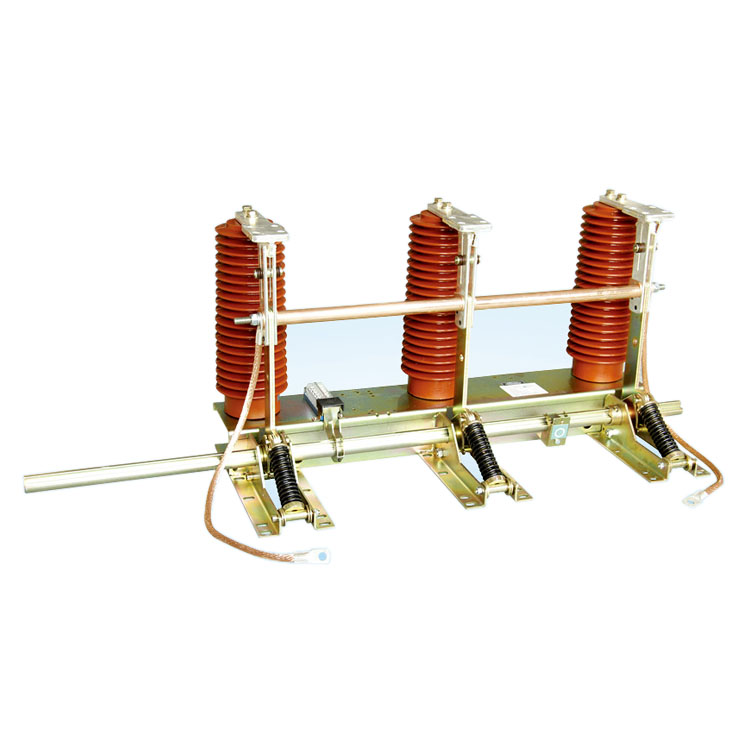

Indoor high voltage AC grounding switch JN22B 40.5KV 31.5KV for switchgear from JUCRO Electric

Quantity

Product Detail

indoor high voltage AC grounding switch JN22B 40.5 31.5 for switchgear use from JUCRO Electric

♦ Main use
JN22B-40.5/31.5 indoor high voltage grounding switch (hereinafter referred to as grounding switch) is a new product developed by the company. Its performance meets the requirements of national standard GB1985-2004 "AC high-voltage isolating switch and grounding switch" and IEC62271-102:2002. It is applicable to three-phase rated voltage 40.5kV, AC 50Hz power system, and KYN61-40.5 high voltage switch. Cabinets and other high-voltage switchgears are used together as a grounding protection for high-voltage electrical equipment maintenance.
The JN22B-40.5/31.5 indoor high voltage grounding switch is improved on the basis of the above grounding switch. The structure is simple and compact, the performance is consistent, and it is easy to operate at a small angle.As with the JN15-12 series, JN15-12 connections and transmissions are available.

♦Using environmental conditions
1. The altitude does not exceed l000m:
2, ambient air temperature: upper limit +40 ° C;, the lower limit -10 ° C;
3. The seismic intensity does not exceed 8 degrees;
4. Installed in a place where there is no fire, explosion hazard, severe dust, chemical corrosion and severe vibration.

♦ Ordering instructions
1. When ordering the grounding switch, please indicate the product model, distance and whether it is equipped with a live display (and indicate the model of the monitor).
2. The user should indicate the up and down position of the moving and static contacts when the grounding switch is installed in the cabinet.
3. If you have special requirements, please contact us.

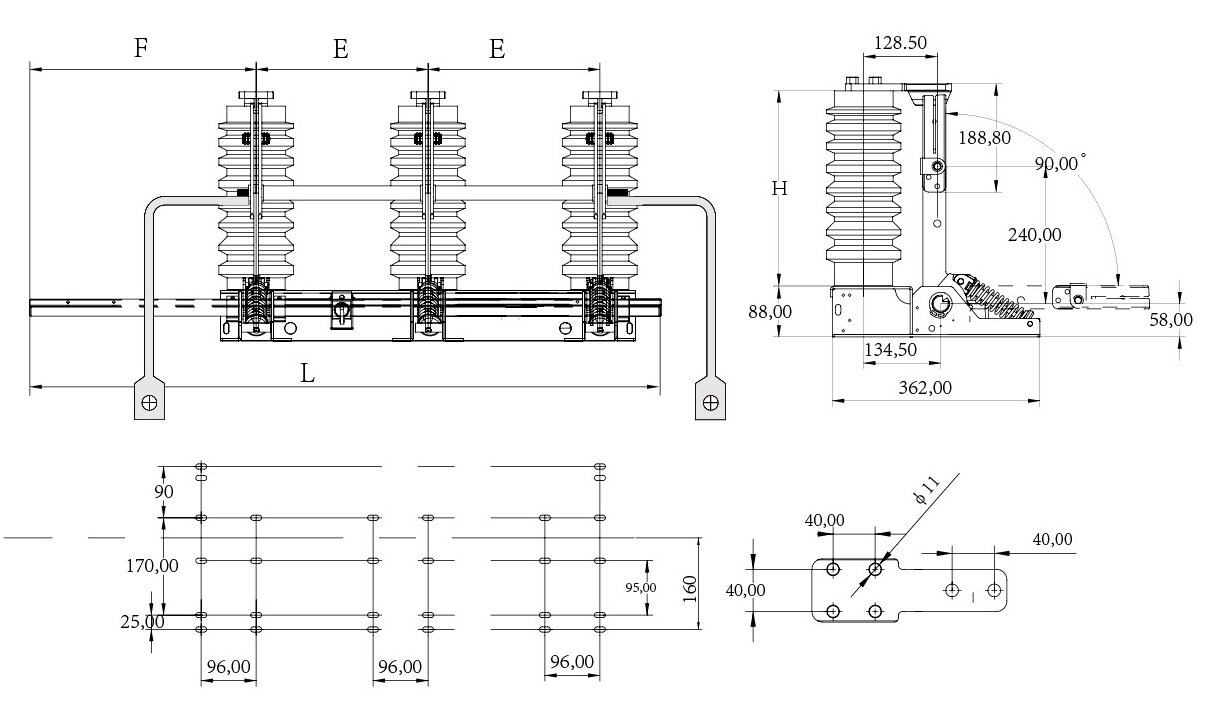

Product number	Phase spacing E	F	Spindle L	High Prototype Ratio Sensor Height H
JN22B-40.5/31.5-280	280	29	1010	High Prototype Ratio Sensor Height H
JN22B-40.5/31.5-300	300	340	1100	Below 1000 meters 340 Below 2000 meters 360 Below 3000 meters 380
JN22B-40.5/31.5-350	350	340	1200
JN22B-40.5/31.5-360	360	320	1200
JN22B-40.5/31.5-400	400	340	1300
