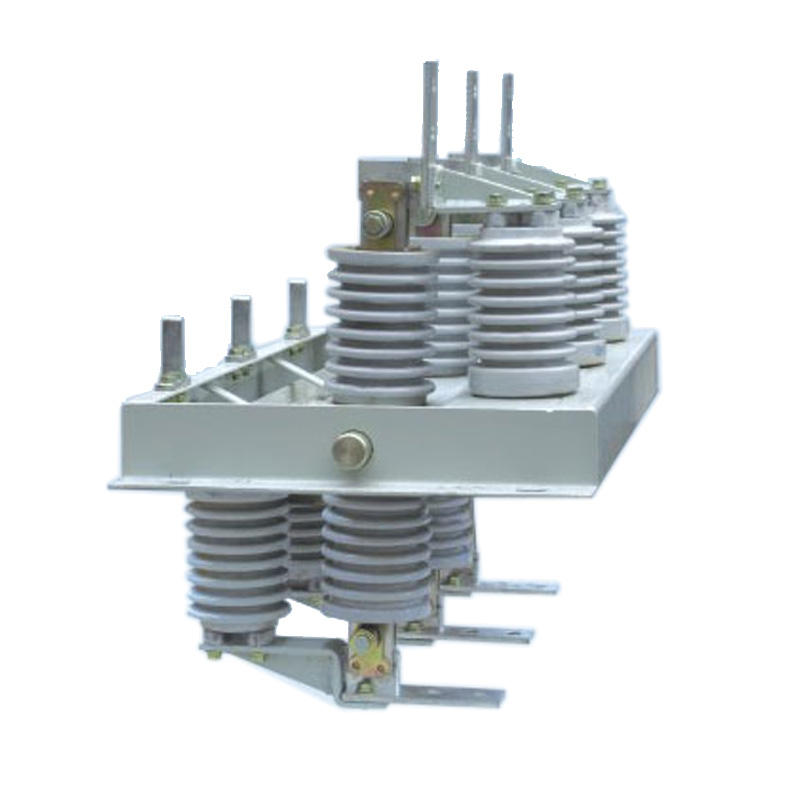

Indoor HV disconnecting switch GN30-12(D) series rotary type

GN30-12 rotary-type indoor high-voltage isolation switch is a rotary blade-type touch a new isolating switch, the main structure is a three- phase total of chassis.

Quantity

Product Detail

General


GN30-12 rotary-type indoor high-voltage isolation switch is a rotary blade-type touch a new isolating switch, the main structure is a three- phase total of chassis, the next two planes, two sets of insulators and the fixed contact, pain Touch a revolving knife, in order to achieve a sub-closing switch.

GN30-12D type switch is GN30-12-type switch based on the increase with a grounding in the form of a knife can meet the needs of different power systems. This product is compact design takes up little space, insulating ability, easy to install and adjust its performance in line with GB1985-89 <AC high-voltage isolating switches and earthing switches> requirement applicable to the exchange rated voltage 10 kV, 50Hz and below indoor system, as there is voltage at no load conditions, the Cut-off circuits. Supporting the use of High Voltage Switchgear can also be used alone.


Main technical parameter


Item

Parameters

The product model

GN30-12/400-12.5

GN30-12/400

GN30-12/1000-31.5

GN30-12/1250-31.5

GN30-12D/400-12.5

GN30-12D/630-20

GN30-12/1000-31.5

GN30-12D/1250-31.5

Rated voltage

12

Rated Current

400

630

1000

1250

Rated short-time withstand current

12.5

20

31.5

31.5

Rated short duration

4

Rated peak withstand current

31.5

50

80

80

Rated insulation level

1min power frequency withstand voltage

Pole to polepole to earth42;fracture49

lightning impulse withstand current(peak value)

Pole to polepole to earth42;fracture49

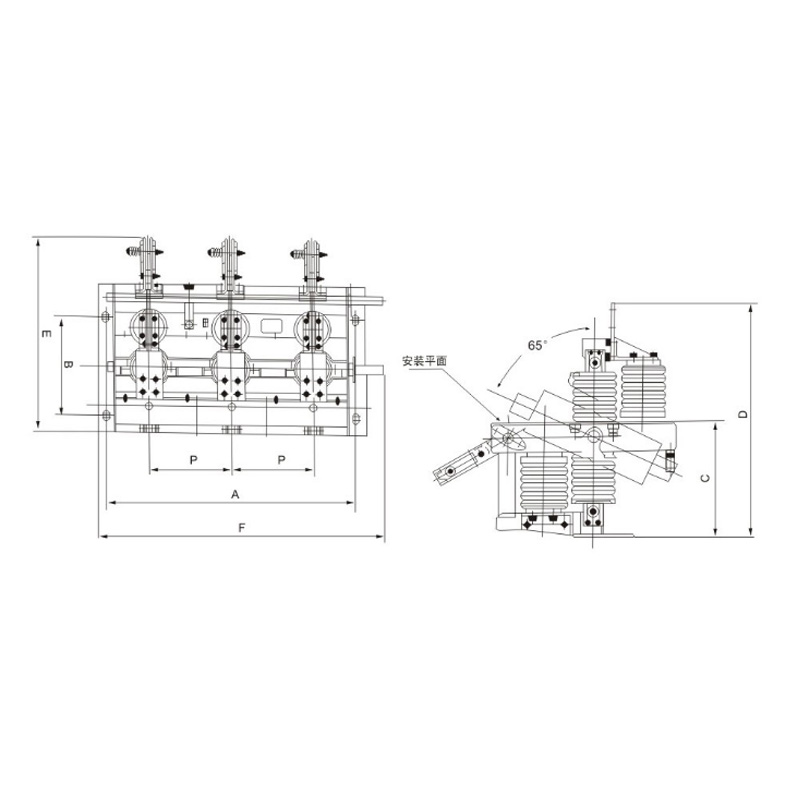

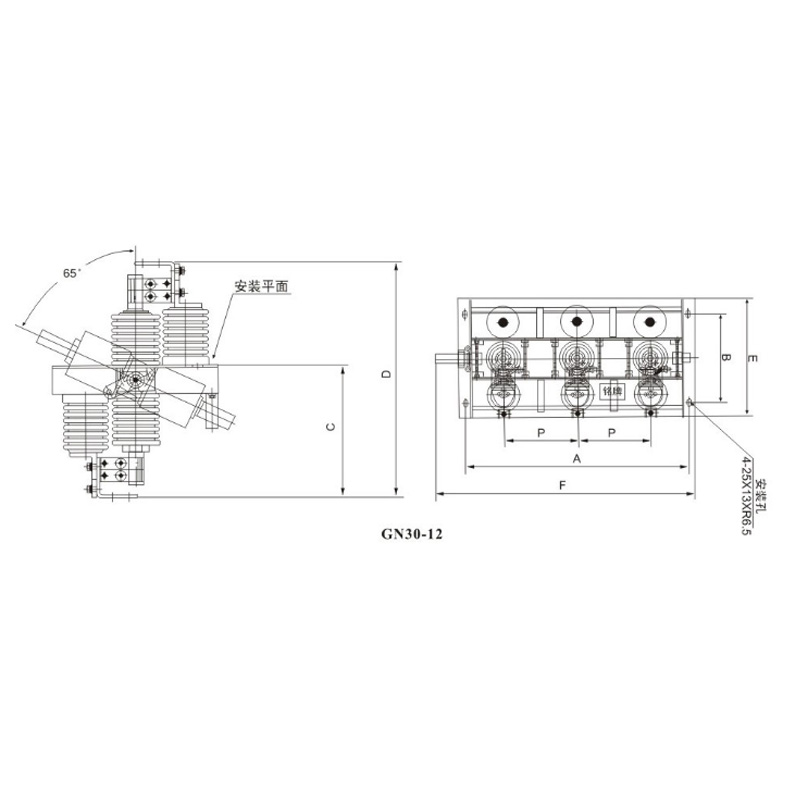

Outline and mounting dimension
