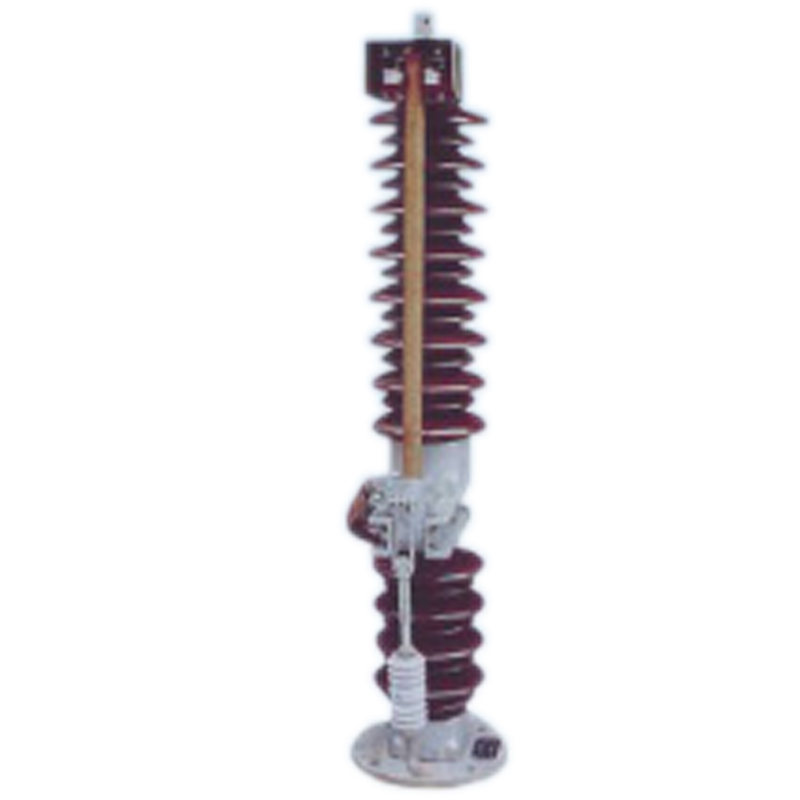

Neutral point outdoor HV disconnecting switch GW8 GW13

GW8、GW13  series neutral point switch is AC 50Hz,/ 60Hz outdoor device, for at no load condition, and the transformer neutral point line with.

Quantity

Product Detail

General


 GW8、GW13  series neutral point switch is AC 50Hz,/ 60Hz outdoor device, for at no load condition, and the transformer neutral point line with.

   GW13 type CJ type electric actuator or, CS14 human actuator operation; type GW8 by CJ type electric actuator or, CS8 human actuator operation.

   The neutral point of GW8, GW13 series isolation switch, consisting of a monopole and actuator.  Unipolar comprises a base, a supporting insulator, conductive arm, contact etc.. the actuator to realize isolating switch, through the connecting rod to drive the conductive arm closing.


Main technical parameters


Item

Unit

Parameters

The product model


GW8

GW13

Rated voltage

KA

40.5

72.5

126

40.5

72.5

126

1 min power frequency withstand voltage

KA

85

140

230

85

160

230

The lighting impluse withstand voltage

KA

185

325

550

185

350

550

Rated Current

A

630

630125

Rated short-time withstand current

KA/S

25\4

25\4

Rated peak withstand current

KA

63

63

Rated mechanical terminal load

N

750

750

1000

750

1000

1250

Motor actuator

Model

V

CJ

CJ

Motor voltage

V

AC380/AC220/DC220/DC110

AC380/AC220/DC220/DC110

Voltage control loop

V

AC380/AC220/DC220/DC110

AC380/AC220/DC220/DC110

Points,closing times

S

7±1

7±1

Output angle



180°

180°

Human actuator

Model


CS8-5

CS14

Voltage control loop

V

AC220

AC220

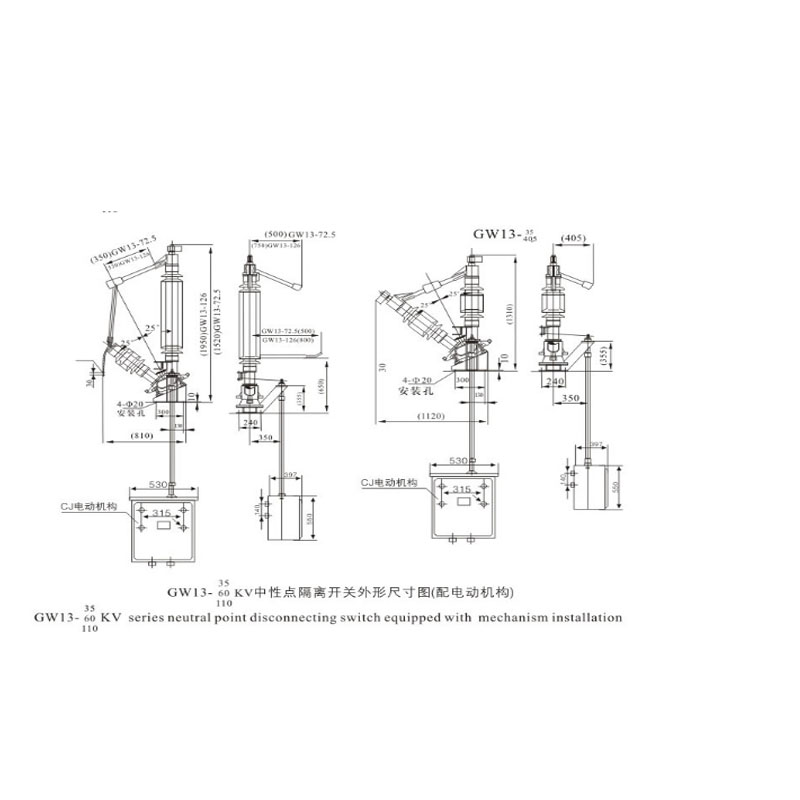

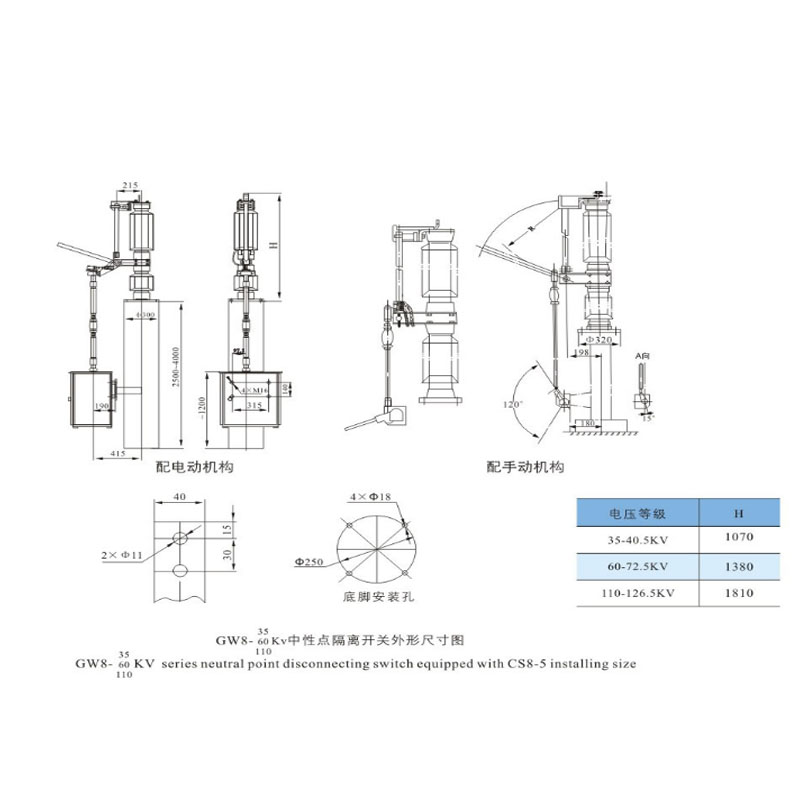

Outline mounting dimension


No comment

Product Detail

General


 GW8、GW13  series neutral point switch is AC 50Hz,/ 60Hz outdoor device, for at no load condition, and the transformer neutral point line with.

   GW13 type CJ type electric actuator or, CS14 human actuator operation; type GW8 by CJ type electric actuator or, CS8 human actuator operation.

   The neutral point of GW8, GW13 series isolation switch, consisting of a monopole and actuator.  Unipolar comprises a base, a supporting insulator, conductive arm, contact etc.. the actuator to realize isolating switch, through the connecting rod to drive the conductive arm closing.


Main technical parameters


Item

Unit

Parameters

The product model


GW8

GW13

Rated voltage

KA

40.5

72.5

126

40.5

72.5

126

1 min power frequency withstand voltage

KA

85

140

230

85

160

230

The lighting impluse withstand voltage

KA

185

325

550

185

350

550

Rated Current

A

630

630125

Rated short-time withstand current

KA/S

25\4

25\4

Rated peak withstand current

KA

63

63

Rated mechanical terminal load

N

750

750

1000

750

1000

1250

Motor actuator

Model

V

CJ

CJ

Motor voltage

V

AC380/AC220/DC220/DC110

AC380/AC220/DC220/DC110

Voltage control loop

V

AC380/AC220/DC220/DC110

AC380/AC220/DC220/DC110

Points,closing times

S

7±1

7±1

Output angle



180°

180°

Human actuator

Model


CS8-5

CS14

Voltage control loop

V

AC220

AC220


Outline mounting dimension




Neutral point outdoor HV disconnecting sw...
