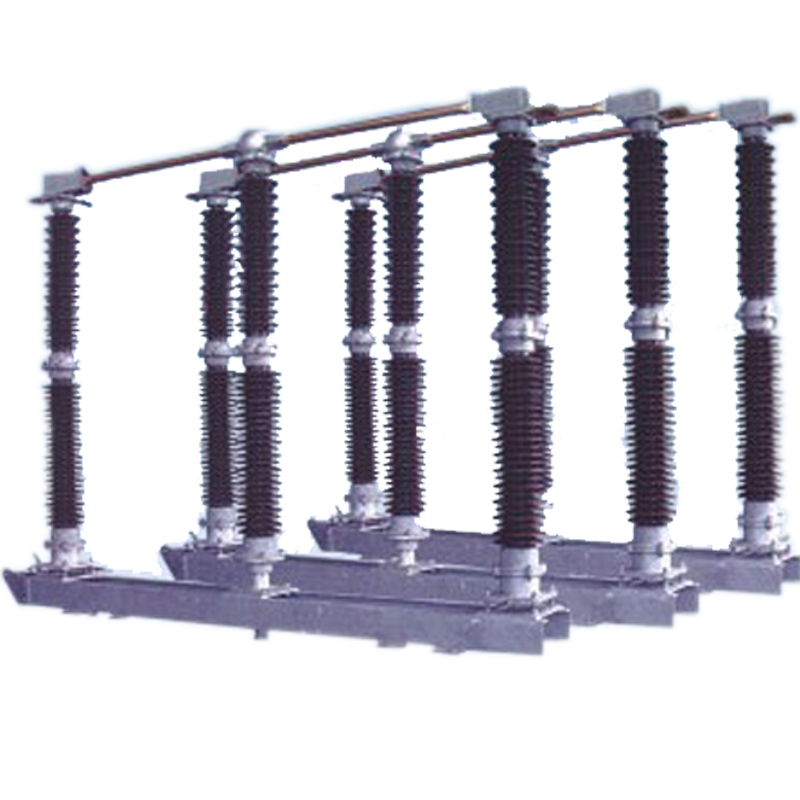

Outdoor HV disconnecting switch GW7-252

GW7-252 series outdoor HV disconnecting isolation switch for the three-pillar structure of the level of open, from the base, pillar insulation, conductive system, earthing switch(except the non-grounded) and the transmission system composed of chief surge

Quantity

Product Detail

General


GW7-252 series outdoor HV disconnecting isolation switch for the three-pillar structure of the level of open, from the base, pillar insulation, conductive system, earthing switch(except the non-grounded) and the transmission system composed of chief surgeon with CJ6 electric sector.

Base and steel plates welded together by the channel. In the channel is equipped with two bearing and a bearing seat, stay with adjustable suspension at both ends of supports for the structure, can continuously adjust the height of the pillars insulator to ensure that finger-touch access to the best position. Bearing installed in the channel middle axis moves the operating rod can be driven to achieve sub-moving touch closing action. Bearing the seal structure to prevent dust, moisture, harmful gases into the card bearing caused by internal phenomenon; bearing thrust ball bearing and the inside is equipped with ball bearing to the heart, the isolating switch and the horizontal component of gravity by two kinds of special bearing and responsibilities so that isolating switch operation after long-running torque will not increase. Stainless steel shaft pin, and self-lubricating bushings; molybdenum disulfide lubricant for high performance lithium-based grease.

Cavity equipped with a transmission link in the channel and the interlocking panels. Channel under the welding plate is installed so that the basis of fixed and on-site. Base there is no grounding, single-ground, double grounding of three. Single grounding and grounding base pairs at one end or both ends of the grounding switch bearings, bearing equipped with a grounding switch.

In the upper end of pillar insulator, composed of the direct contact guillotine and static composition. Knife from the two copper conductive composition, its end has a cylindrical contact of all welded, with the help of copper and aluminum cover clip blocks facilitate the integration between the two tubes. Static contact to mean a multi-point contact forms, each piece has a separate right touch of spring, there is enough to guarantee selection into the pillars at both ends of the role of insulators in the bus pull still guarantee a reliable contact. Static contact under the action of the reset spring deflection angle to facilitate the points, closing light motor coordination.


Main technical parameters


Item

Unit

Parameters

The product model


GW7-72.5

GW7-145

GW7-252

Rated voltage

KV

72.5

145

252

Rated insulation level

1 min power frequency withstand voltage

The interphase/ground

160

160

230

Fracture

200

200

230+70

Rated lightning impluse withstand current(peak)

On the groud

350

650

1050

Fracture

410

650+120

1050+120

Grouding switch of the shortest distance in the process of closing

84

164

291

Rated Frequency

Hz

50/60

Rated Current

A

125020002500
31504000

1250/2000

2000/25003150
40005000

Rated peak withstand current

KA

100/125

80/100

125/60

Rated short-time withstand current

40/50

31.5/40

50/63

Rated short circuit duration

S

4

3

Rated mechanical terminal load

Horizontal and vertical

N

750/1000

1250

1500

Horizontal

500/750

750

1000

vertical force

750

1000

1250

Isolating switch, bus transfer current switching capability


100V1600A
100

100V1600A
100

100V1600A
100

Grounding switch induction
current Switching capability

Electromagnetic induction
current(current/voltage)

A/KV

100/4(80/2)

100/6(80/2)

160/15(3/12)

Electrostatic induction
current(current/voltage)

A/KV

2月6日

5/6(2/6)

10/15(3/12)

The opening and closing times


times

10

Isolating switch low current switching capability

The capacitive current

A

1

1

The inductor current

A

0.5

0.5

RIV Radio interference level

μV

≤500

Creepage distance

mm

≥1813/2248

≥3625/4495

≥6300/7812

The life of the machine(M1)


times

5000

5000

10000

Applicable altitude(less than)


≤2000

≤2000

≤2000

Motor actuator

Model

V

CJ

Motor voltage

V

AC380/AC220/DC220/DC110

Voltage control loop

V

AC380/AC220/DC220/DC110

Points,closing times

S

7±1

16±1

Output angle



180°

180°

Human actuator

Model


CS17

Electromagnetic lock voltage


AC220/DC220/DC110

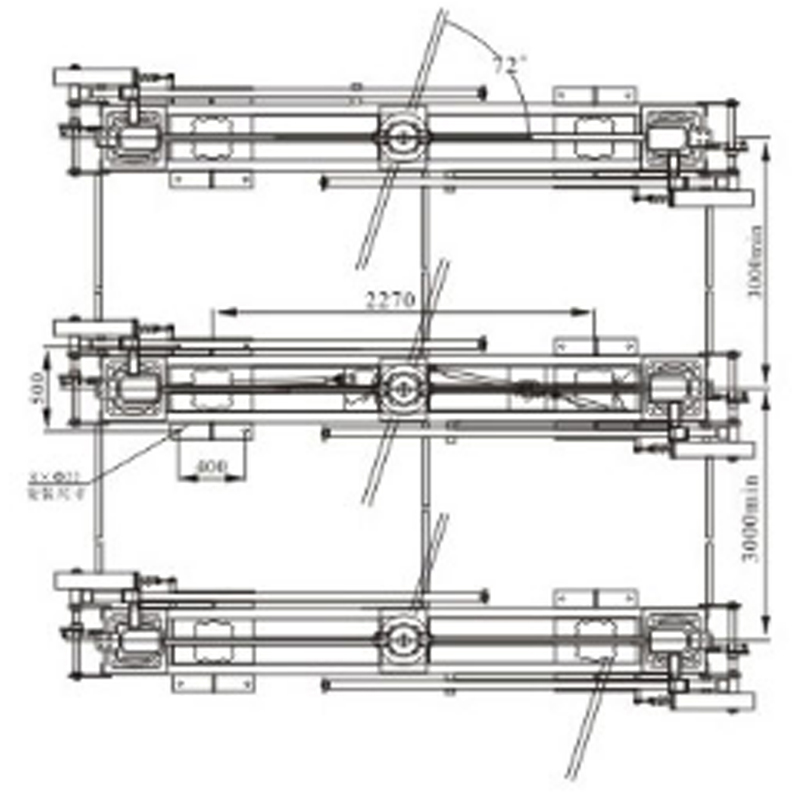

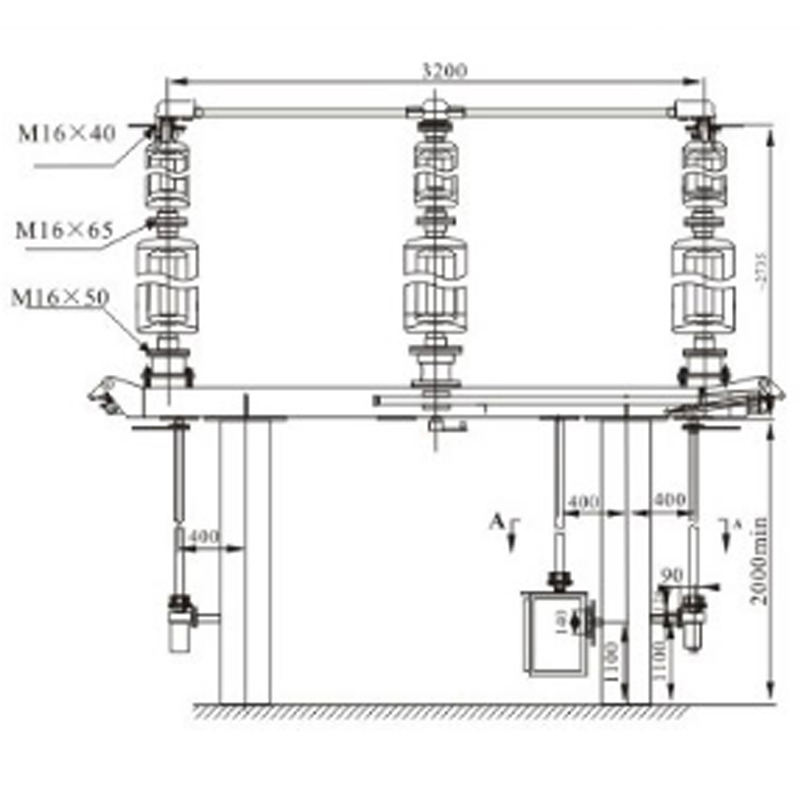

Outline mounting dimension



No comment
