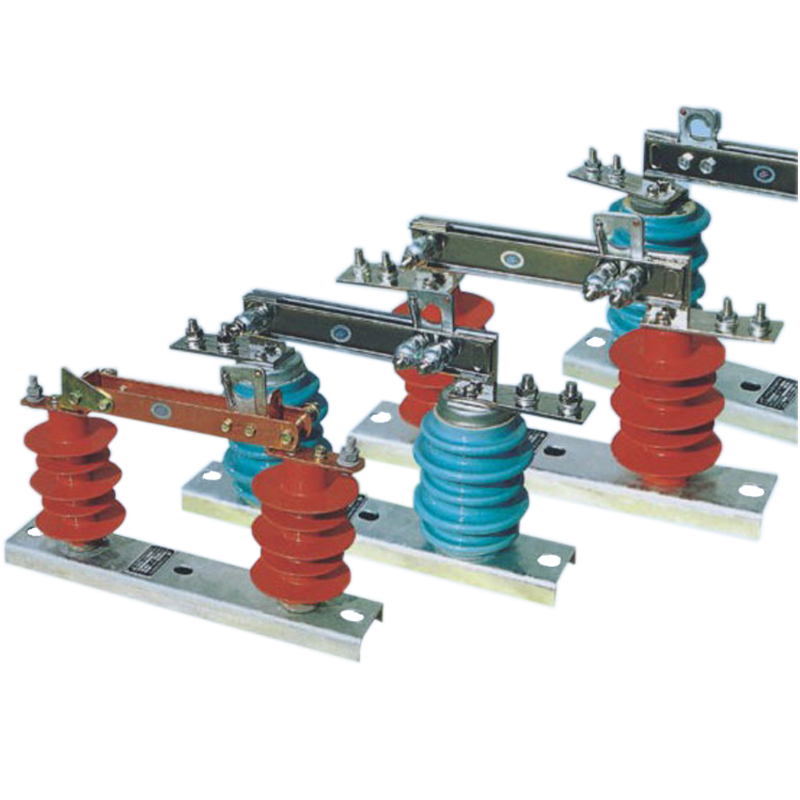

Outdoor HV disconnecting switch GW9

Rated voltage: 10kv/15kv
Maximum work voltage: 12kv/20kv

Outdoor HV disconnecting switch GW9

Quantity

Product Detail

Main technical parameters


Item

Unit

Parameters

Rated voltage

KV

10\15

Maximum work voltage

KV

12\20

Rated insulation level

1 min power frequency withstand voltage

KV

To the ground、40/40  Fracture、47/47

impulse frequency

KV

To the ground、105/105  Fracture 、120/126

Rated Frequency

Hz

50

Rated Current

A

200/400/630/1250

Thermal stability current 2 seconds（effective）

KA

6.3/12.5/20/31.5

Rated peak withstand current(maxium)

KA

16/31.5/50/80

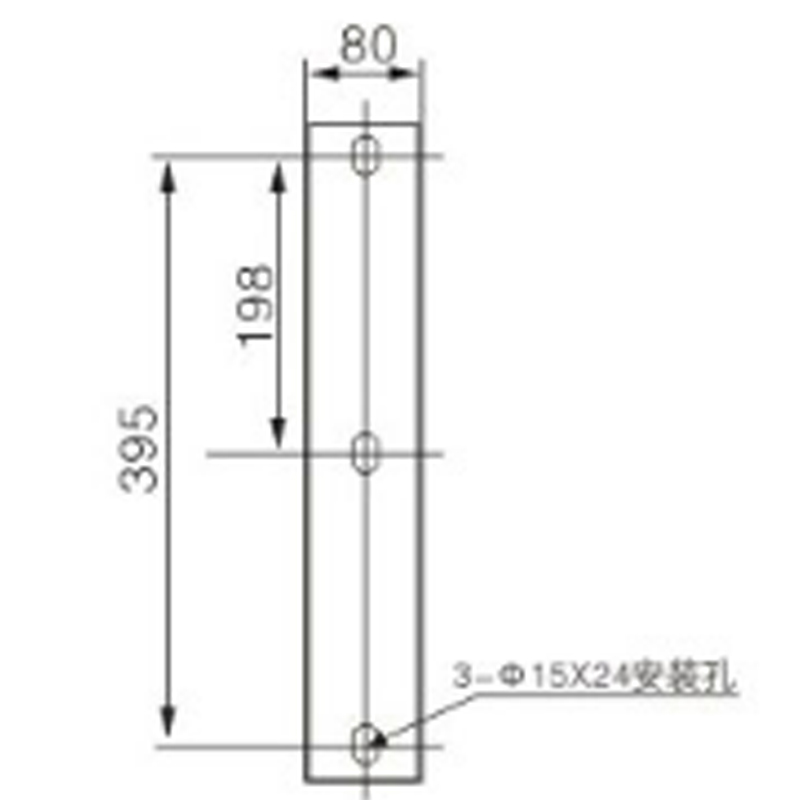

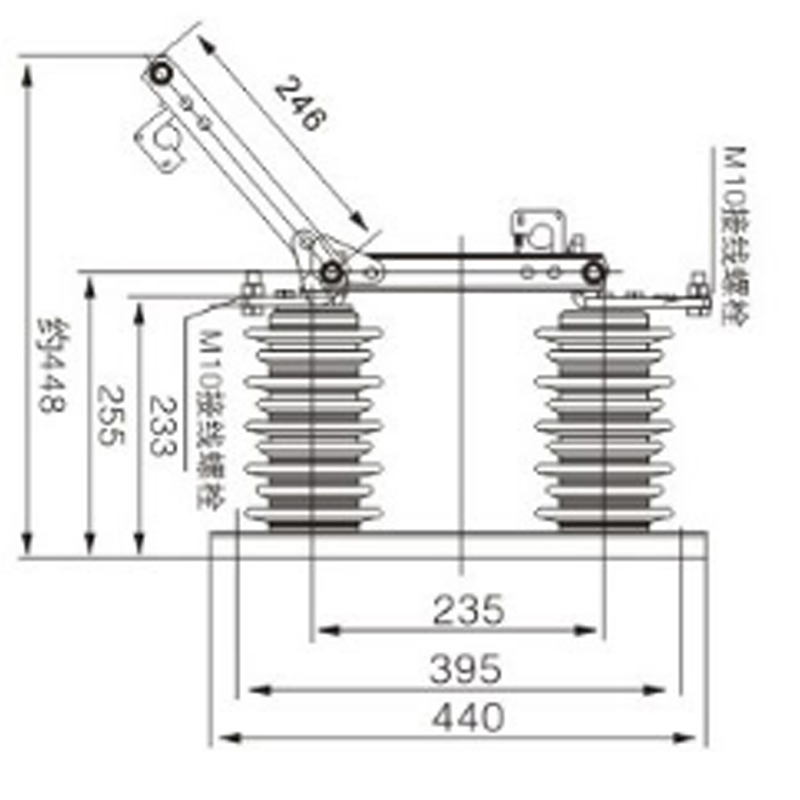

Outline mounting dimension



No comment

Product Detail

Main technical parameters


Item

Unit

Parameters

Rated voltage

KV

10\15

Maximum work voltage

KV

12\20

Rated insulation level

1 min power frequency withstand voltage

KV

To the ground、40/40  Fracture、47/47

impulse frequency

KV

To the ground、105/105  Fracture 、120/126

Rated Frequency

Hz

50

Rated Current

A

200/400/630/1250

Thermal stability current 2 seconds（effective）

KA

6.3/12.5/20/31.5

Rated peak withstand current(maxium)

KA

16/31.5/50/80


Outline mounting dimension
