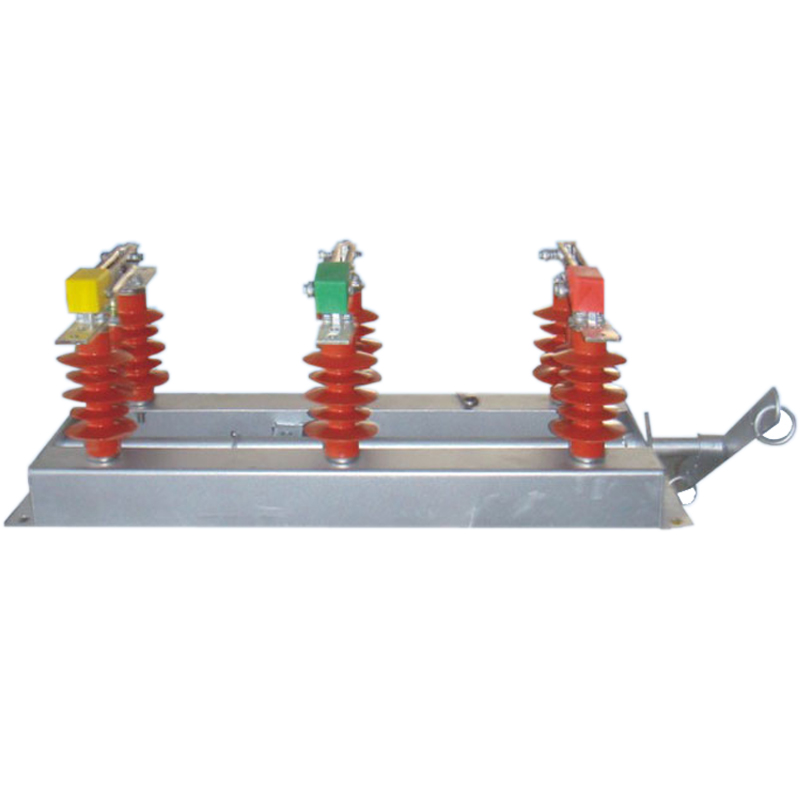

Outdoor HV disconnecting switch GW-12KV GW-40.5KV

Rated voltage: 12kv/40.5kv
Rated frequency: 50HZ

Quantity

Product Detail

General


 GW¨-12、GW¨-40.5 series outdoor high-voltage isolation switch(hereinafter referred to as isolating switch), is a company based on the original products through design updates, so that structure is more reasonable and more reliable operation. This applies to switching frequency 50Hz, rated voltage of 12KV or 40.5KV power systems. In outdoor high-voltage power distribution switchgear equipment, line for line voltage in a no load to open and close the circuit, of which anti-dirty filthy isolating switch users in the region to meet the heavy demand, which can effectively solve the isolation switch in operation appears flashover problems. Switch three-pole interaction, over the same period is good, with Guo in the spring, enabling fast together=this switch with similar products, compared withan open cut, closing small inductor and capacitor current advantage.


Model

Dimensionsmm

B

C

D

E

F

GW¨-12

400

950

1200

570

495

GW¨-40.5

500

1250

1450

815

728

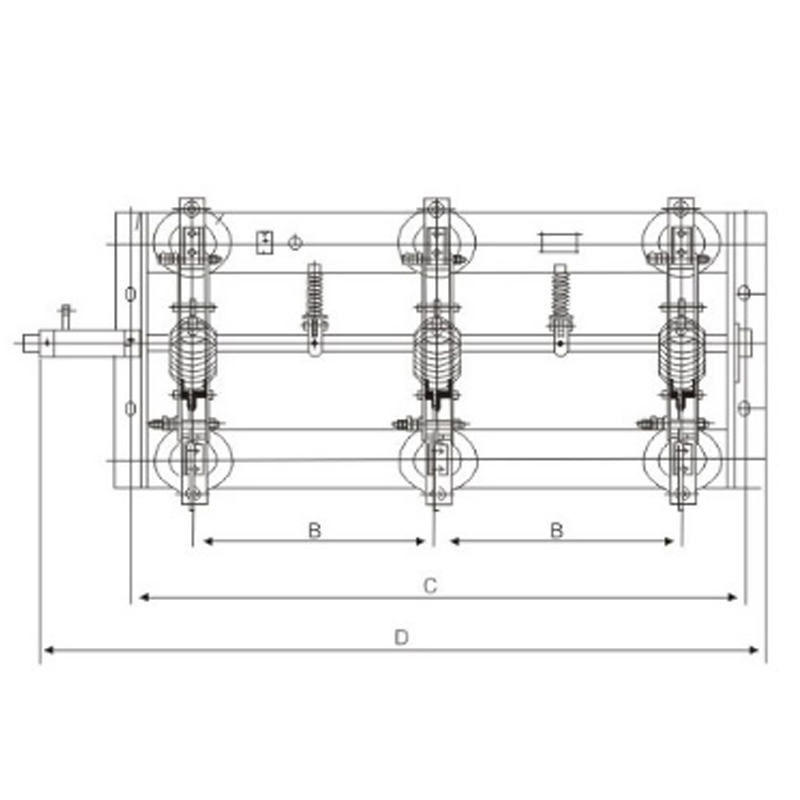

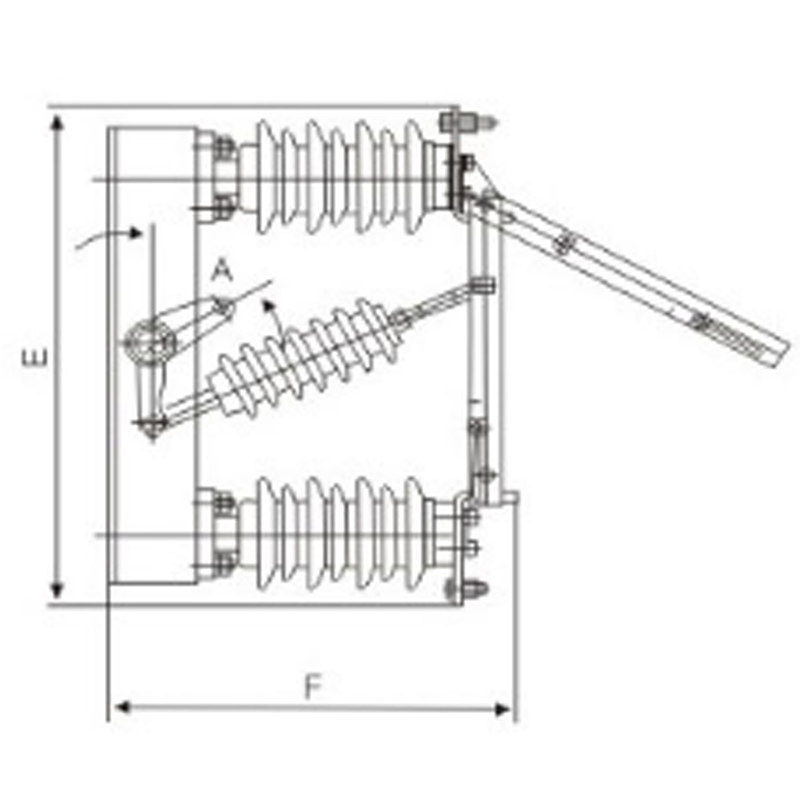

Outline and mounting dimension





No comment

Product Detail

General


 GW¨-12、GW¨-40.5 series outdoor high-voltage isolation switch(hereinafter referred to as isolating switch), is a company based on the original products through design updates, so that structure is more reasonable and more reliable operation. This applies to switching frequency 50Hz, rated voltage of 12KV or 40.5KV power systems. In outdoor high-voltage power distribution switchgear equipment, line for line voltage in a no load to open and close the circuit, of which anti-dirty filthy isolating switch users in the region to meet the heavy demand, which can effectively solve the isolation switch in operation appears flashover problems. Switch three-pole interaction, over the same period is good, with Guo in the spring, enabling fast together=this switch with similar products, compared withan open cut, closing small inductor and capacitor current advantage.


Model

Dimensionsmm

B

C

D

E

F

GW¨-12

400

950

1200

570

495

GW¨-40.5

500

1250

1450

815

728



Outline and mounting dimension
