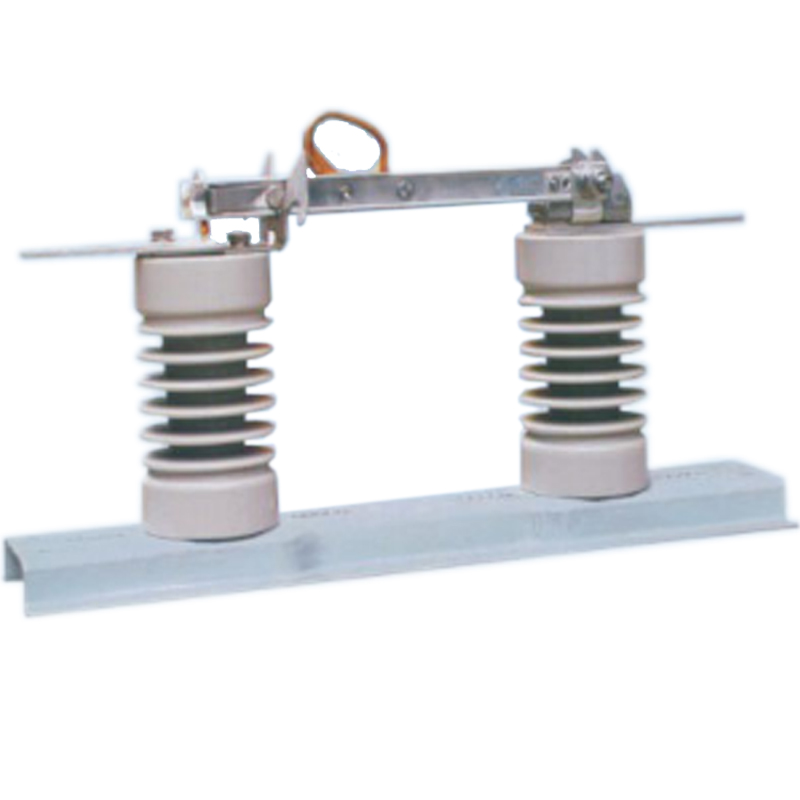

Outdoor HV disconnecting switch GWD-Ι-12KV GWD-Ⅱ-12KV

Rated voltage: 12KV
Rated Current: 630A/1000A/1250A

Outdoor HV disconnecting switch GWD-Ι-12KV GWD-Ⅱ-12KV

Quantity

Product Detail

Main technical parameters


Item

Unit

GWD-12/630

GWD-12/1000

GWD-12/1250

Rated voltage

KV

12

12

12

Rated Current

A

630

1000

1250

Rated Frequency

Hz

50/60

50/60

50/60

Rated short-time withstand current

KA

25/3S

25/3S

25/3S

Rated peak withstand current

KA

63

63

63

1min Rated short-time power frequency withstand voltage

KV

65/50

65/50

65/50

Rated lighting impulse withstand voltage

KV

120

120

120

The creepage distance of procelain

mm

398

398

398

Creepage distance of procelain

mm/KA

32.5(36.7)

32.5(36.7)

32.5(36.7)

Broken produCT distance

mm

220

220

220

Mechanical life

Times

≥2000

≥2000

≥2000

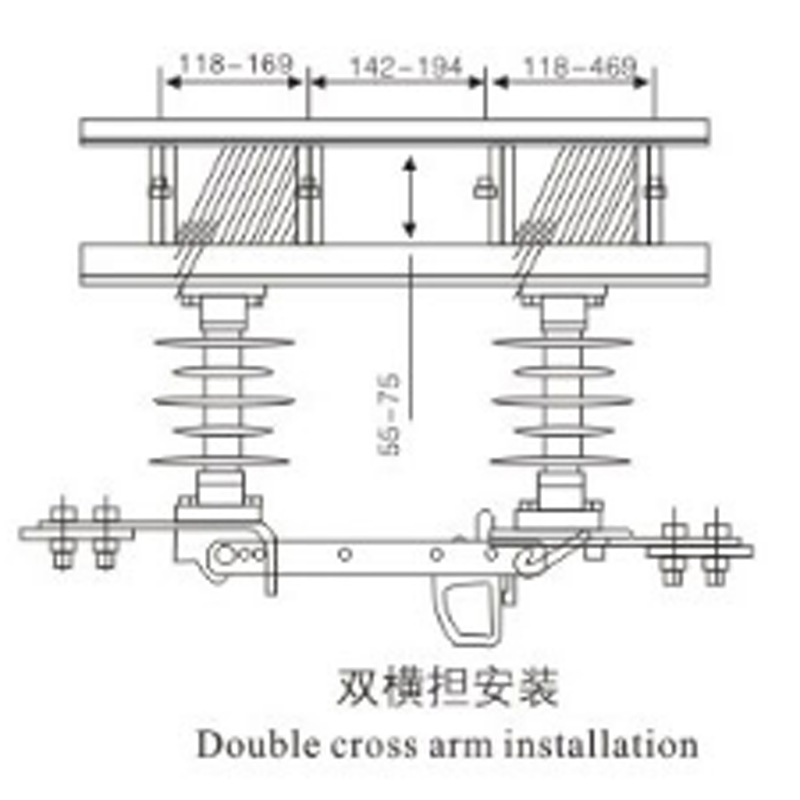

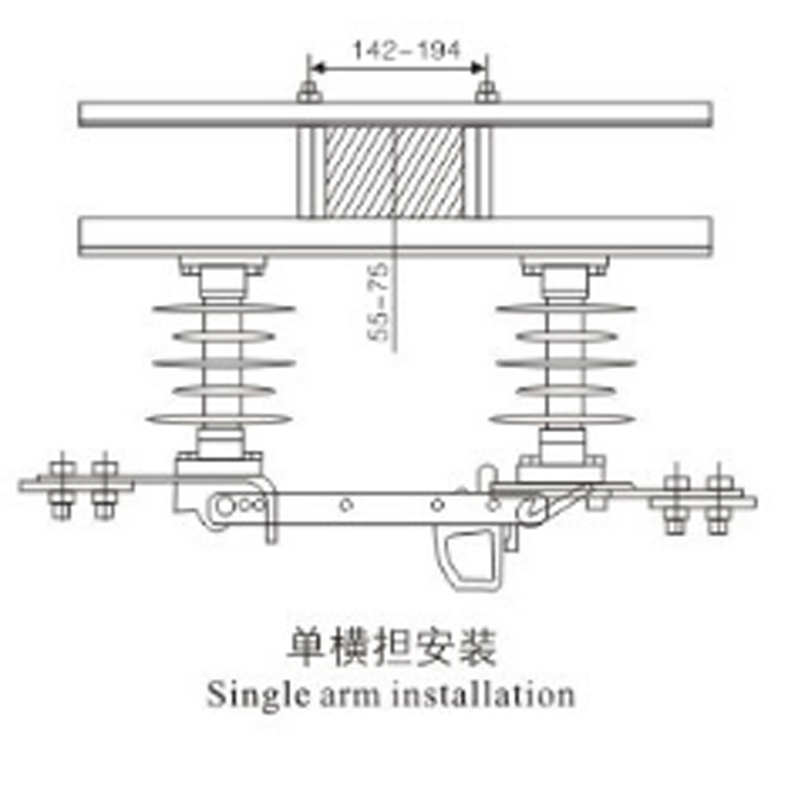

Outline and mounting dimension


No comment

Product Detail

Main technical parameters


Item

Unit

GWD-12/630

GWD-12/1000

GWD-12/1250

Rated voltage

KV

12

12

12

Rated Current

A

630

1000

1250

Rated Frequency

Hz

50/60

50/60

50/60

Rated short-time withstand current

KA

25/3S

25/3S

25/3S

Rated peak withstand current

KA

63

63

63

1min Rated short-time power frequency withstand voltage

KV

65/50

65/50

65/50

Rated lighting impulse withstand voltage

KV

120

120

120

The creepage distance of procelain

mm

398

398

398

Creepage distance of procelain

mm/KA

32.5(36.7)

32.5(36.7)

32.5(36.7)

Broken produCT distance

mm

220

220

220

Mechanical life

Times

≥2000

≥2000

≥2000

Outline and mounting dimension


Outdoor HV disconnecting switch GWD-Ι-12KV GWD-Ⅱ-12KV
Rated voltage: 12KV
Rated Current: 630A/1000A/1250A
