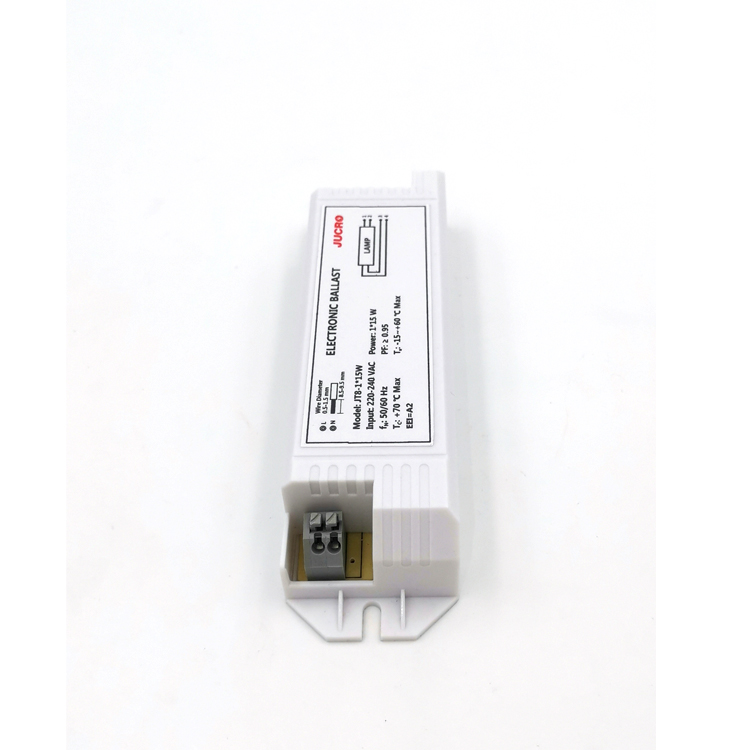

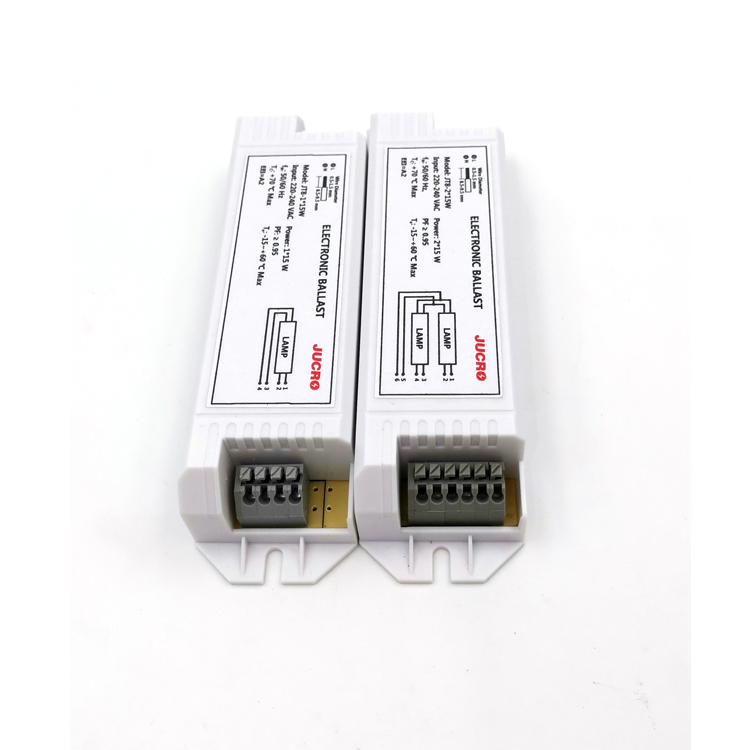

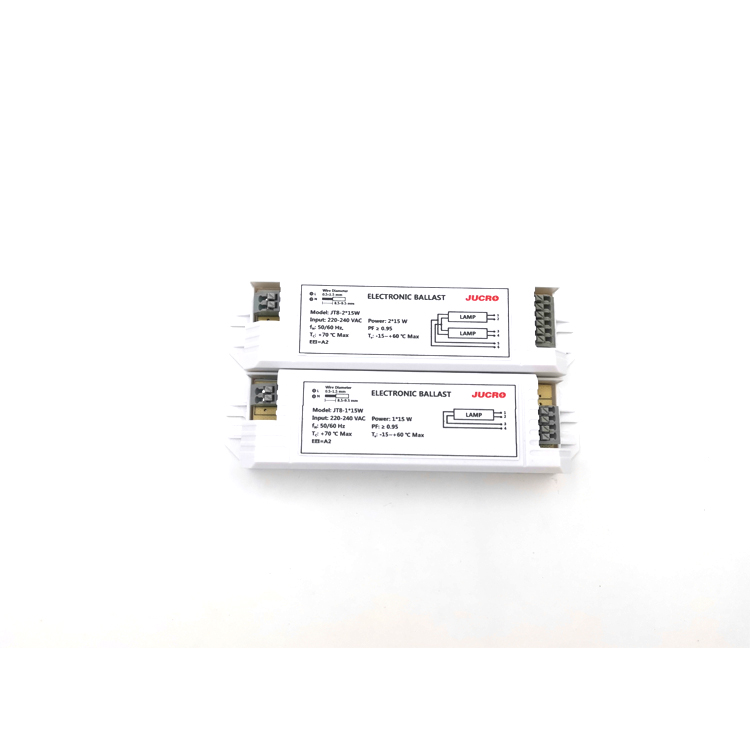

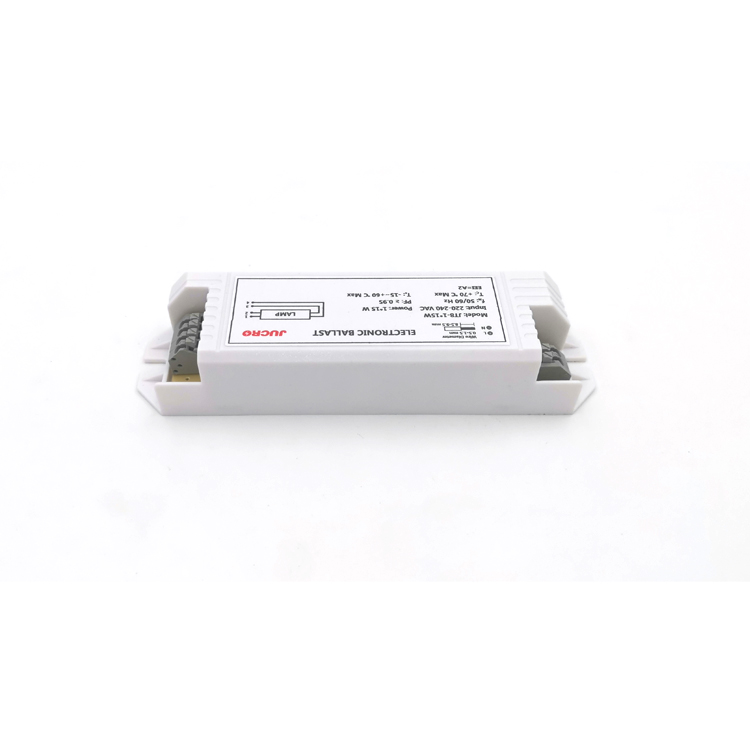

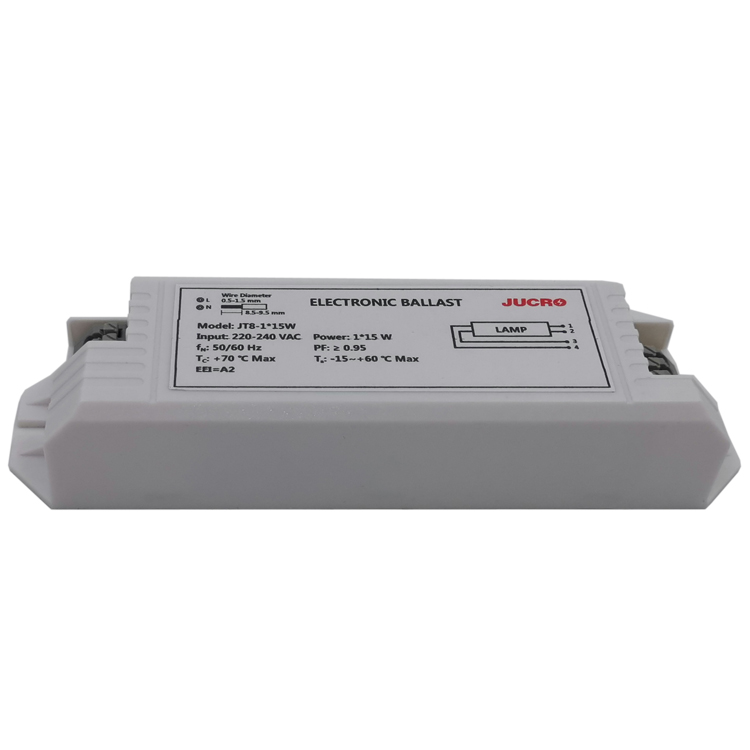

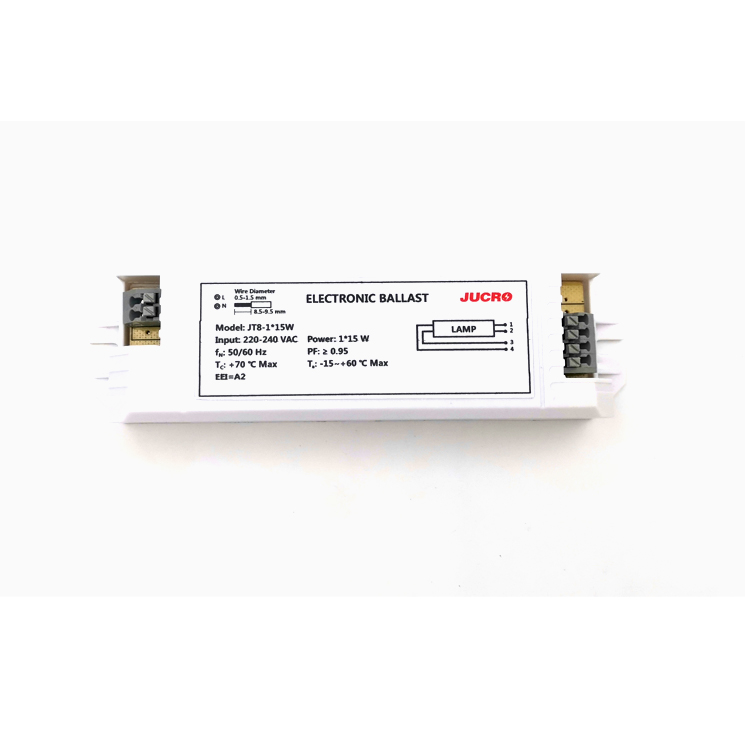

JT8 1*15W ELECTRONIC BALLAST

Electronic ballast is an electronic control device that uses semiconductor electronic components to convert DC or
low-frequency AC voltage into high-frequency AC voltage and drive low-voltage gas discharge lamp (sterilization
lamp), halogen lamp and other

JT8 1*15W  ELECTRONIC BALLAST

Quantity

Product Detail

JT8 1*15W 1*18W 1*20W 1*30W 1*36W 1*40W ELECTRONIC BALLAST-JUCRO Electric


Electronic ballast is an electronic control device that uses semiconductor electronic components to convert DC or

low-frequency AC voltage into high-frequency AC voltage and drive low-voltage gas discharge lamp (sterilization

lamp), halogen lamp and other light sources. Widely used in fluorescent lamps, UV germicidal lamps and other

light sources. It can be directly used with T5/T6/T8 series UV germicidal lamp.


Model No.

Rated voltage(V)

Rated frequency

(Hz)

lamp type

PF

TC()

Ta()

JT8-1*15W

AC220V-240V

50Hz/60Hz

T8-15W

0.95

70

-1560

JT8-1*18W

AC220V-240V

50Hz/60Hz

T8-18W

0.95

70

-1560

JT8-1*20W

AC220V-240V

50Hz/60Hz

T8-20W

0.95

70

-1560

JT8-1*30W

AC220V-240V

50Hz/60Hz

T8-30W

0.95

70

-1560

JT8-1*36W

AC220V-240V

50Hz/60Hz

T8-36W

0.95

70

-1560

JT8-1*40W

AC220V-240V

50Hz/60Hz

T8-40W

0.95

70

-1560

JT8-2*15W

AC220V-240V

50Hz/60Hz

T8-15W

0.95

70

-1560

JT8-2*18W

AC220V-240V

50Hz/60Hz

T8-18W

0.95

70

-1560

JT8-2*20W

AC220V-240V

50Hz/60Hz

T8-20W

0.95

70

-1560

JT8-2*30W

AC220V-240V

50Hz/60Hz

T8-30W

0.95

70

-1560

JT8-2*36W

AC220V-240V

50Hz/60Hz

T8-36W

0.95

70

-1560

JT8-2*40W

AC220V-240V

50Hz/60Hz

T8-40W

0.95

70

-1560

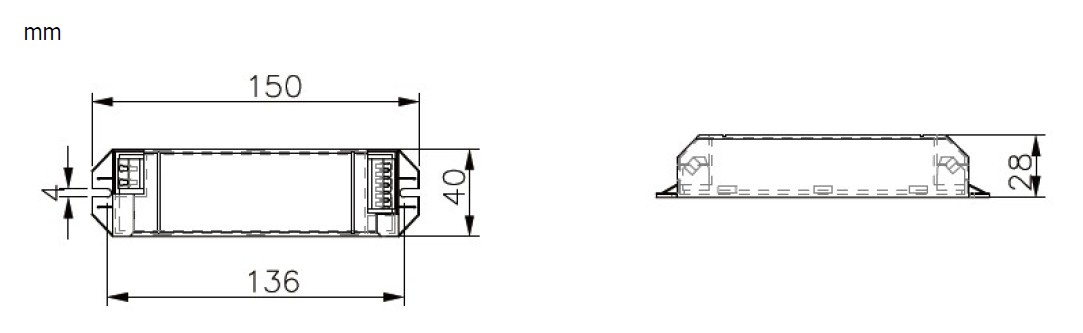

Dimension



No comment

Product Detail

JT8 1*15W 1*18W 1*20W 1*30W 1*36W 1*40W ELECTRONIC BALLAST-JUCRO Electric


Electronic ballast is an electronic control device that uses semiconductor electronic components to convert DC or

low-frequency AC voltage into high-frequency AC voltage and drive low-voltage gas discharge lamp (sterilization

lamp), halogen lamp and other light sources. Widely used in fluorescent lamps, UV germicidal lamps and other

light sources. It can be directly used with T5/T6/T8 series UV germicidal lamp.


Model No.

Rated voltage(V)

Rated frequency

(Hz)

lamp type

PF

TC()

Ta()

JT8-1*15W

AC220V-240V

50Hz/60Hz

T8-15W

0.95

70

-1560

JT8-1*18W

AC220V-240V

50Hz/60Hz

T8-18W

0.95

70

-1560

JT8-1*20W

AC220V-240V

50Hz/60Hz

T8-20W

0.95

70

-1560

JT8-1*30W

AC220V-240V

50Hz/60Hz

T8-30W

0.95

70

-1560

JT8-1*36W

AC220V-240V

50Hz/60Hz

T8-36W

0.95

70

-1560

JT8-1*40W

AC220V-240V

50Hz/60Hz

T8-40W

0.95

70

-1560

JT8-2*15W

AC220V-240V

50Hz/60Hz

T8-15W

0.95

70

-1560

JT8-2*18W

AC220V-240V

50Hz/60Hz

T8-18W

0.95

70

-1560

JT8-2*20W

AC220V-240V

50Hz/60Hz

T8-20W

0.95

70

-1560

JT8-2*30W

AC220V-240V

50Hz/60Hz

T8-30W

0.95

70

-1560

JT8-2*36W

AC220V-240V

50Hz/60Hz

T8-36W

0.95

70

-1560

JT8-2*40W

AC220V-240V

50Hz/60Hz

T8-40W

0.95

70

-1560


Dimension
