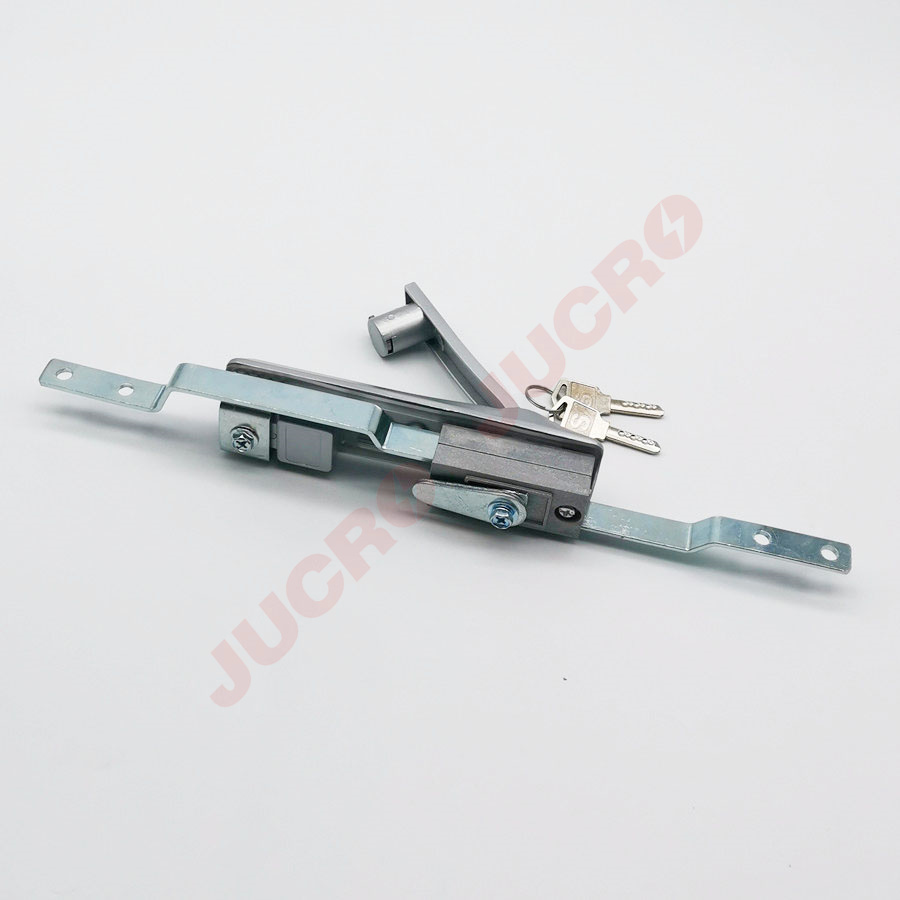

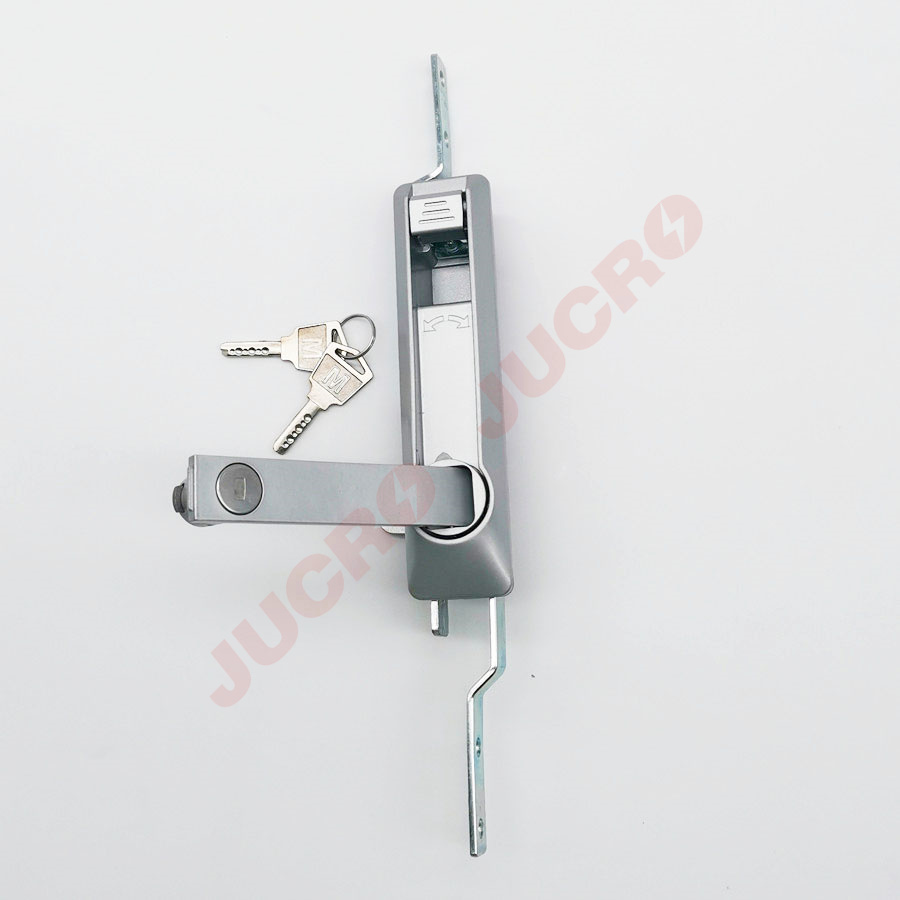

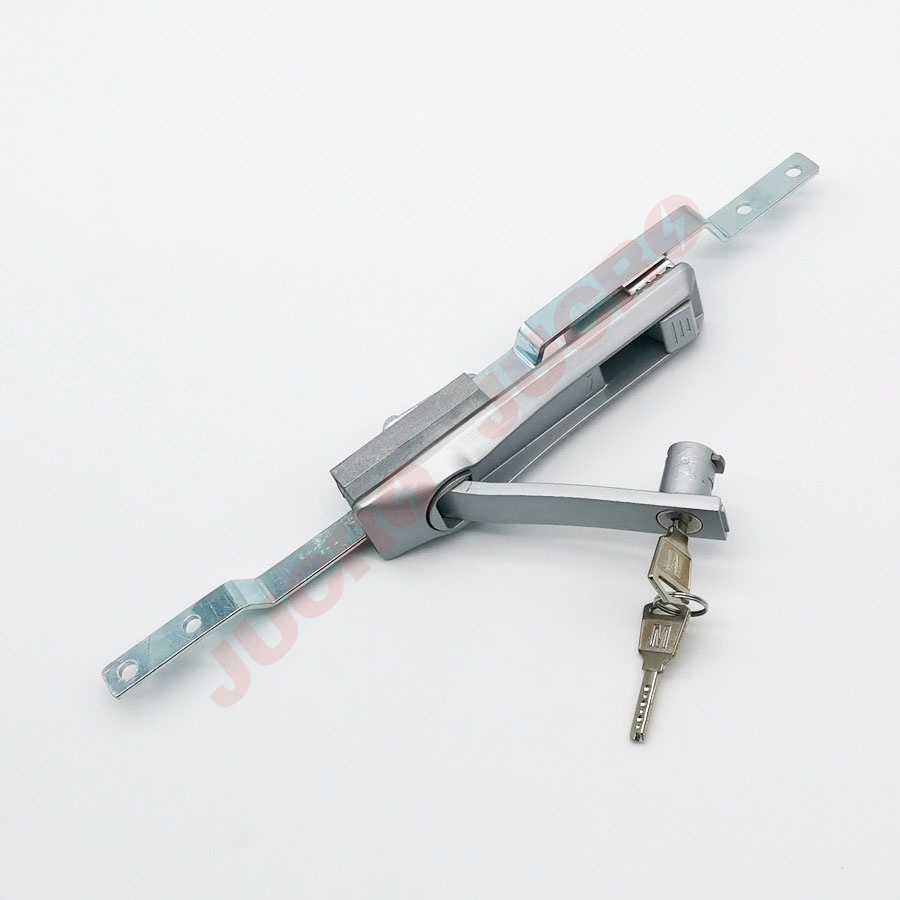

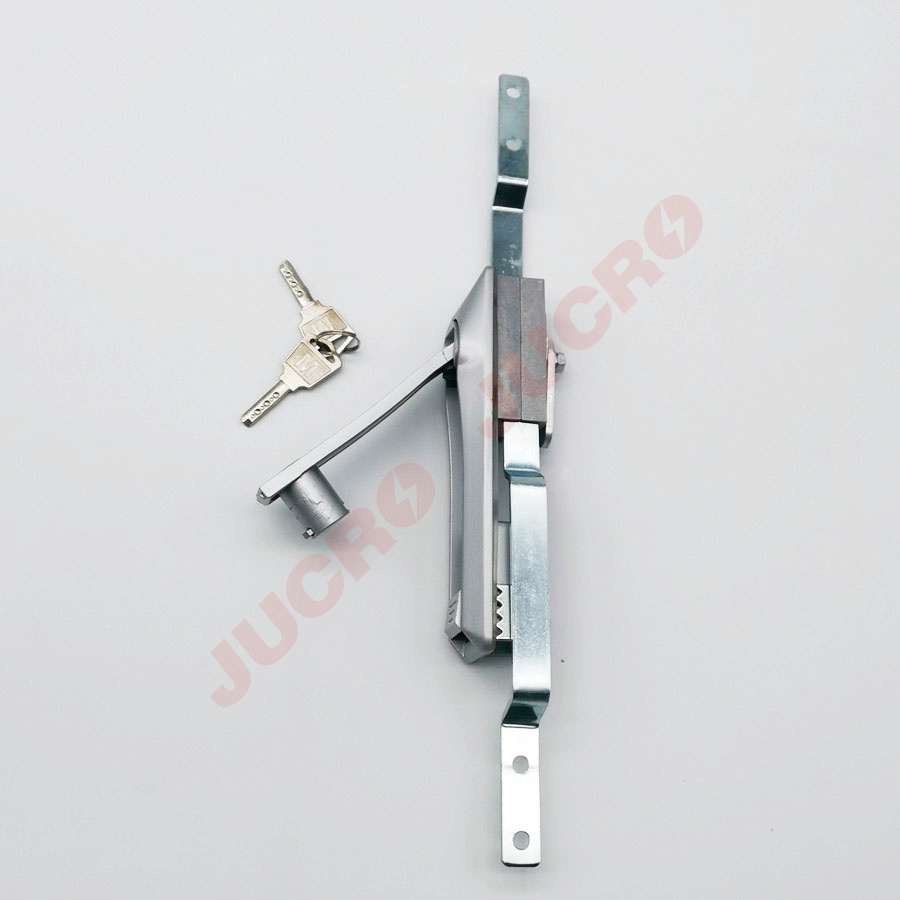

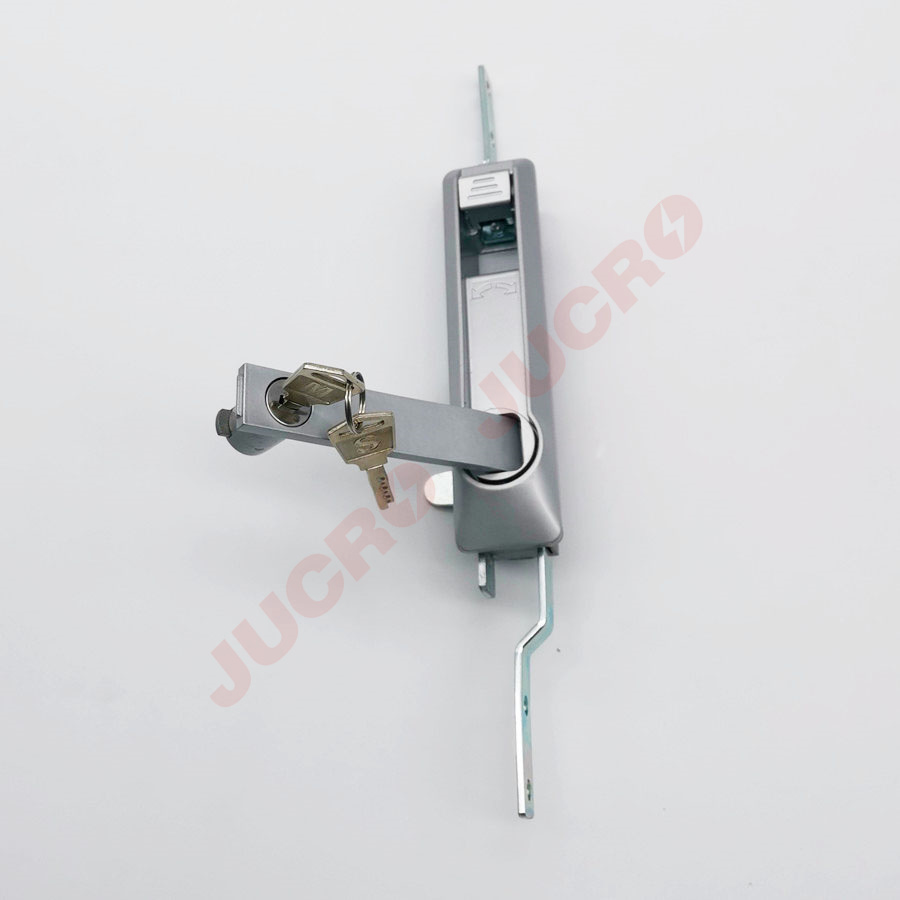

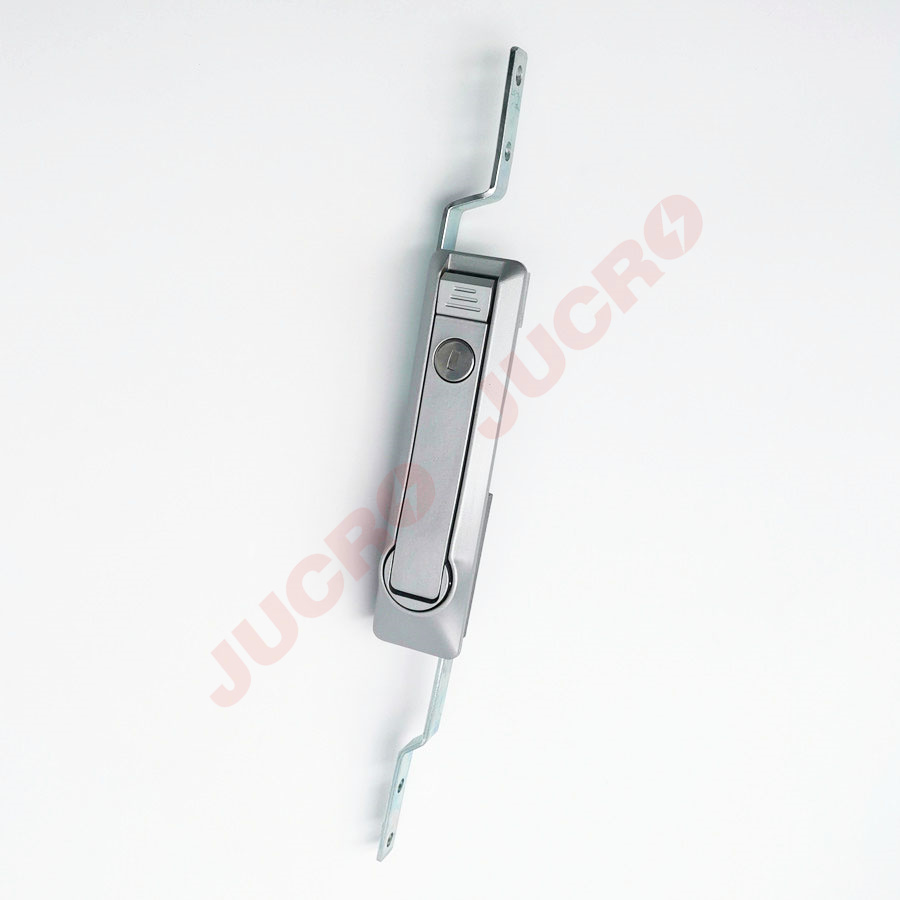

Rod Control Lock DL828

Rod Control Lock DL828

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、手柄、按钮、Q235压板,碳钢钢栓、传动条

Zinc alloy basehandle, button and plate; carbon steel bolt and rod

表面处理

Surface treatment

纳米哑光银基座、手柄、按钮,镀白锌钢栓、传动壳组件

Nanometer matt silver base, handle and button; white zinc plated steel bolt and rod mechanism

结构说明

Structure descriPTion

锁芯180°旋转打开,按下按钮,手柄自动弹起,带动传动壳组件实现开启或锁闭

90 degree handle rotation combines with rod latch to open or close

备 注

Remark

默认K100钥匙

Default key K100



性能参数 PERFORMANCE PARAMETERS

手柄承载拉力值

Handle load tension capability

340N

手柄承载扭矩值

Handle load torque capability

28Nm

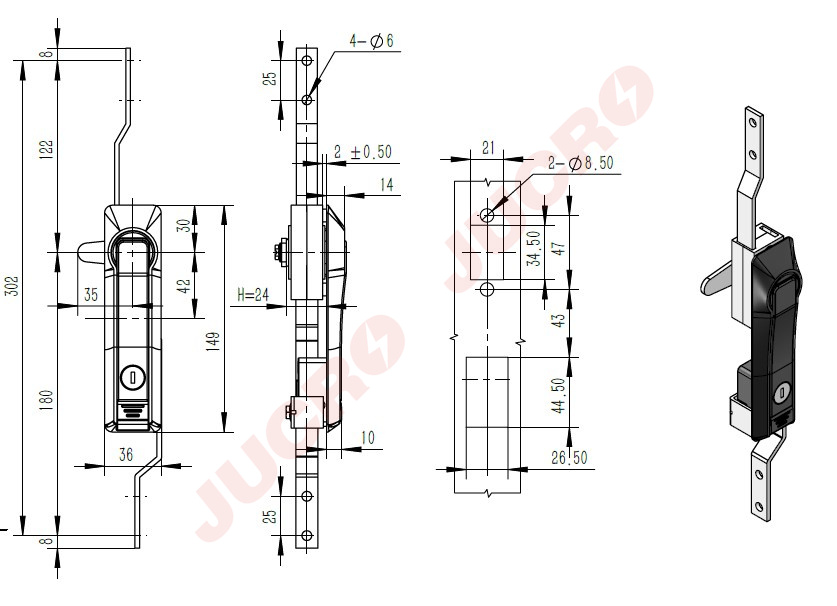

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、手柄、按钮、Q235压板,碳钢钢栓、传动条

Zinc alloy basehandle, button and plate; carbon steel bolt and rod

表面处理

Surface treatment

纳米哑光银基座、手柄、按钮,镀白锌钢栓、传动壳组件

Nanometer matt silver base, handle and button; white zinc plated steel bolt and rod mechanism

结构说明

Structure descriPTion

锁芯180°旋转打开,按下按钮,手柄自动弹起,带动传动壳组件实现开启或锁闭

90 degree handle rotation combines with rod latch to open or close

备 注

Remark

默认K100钥匙

Default key K100



性能参数 PERFORMANCE PARAMETERS

手柄承载拉力值

Handle load tension capability

340N

手柄承载扭矩值

Handle load torque capability

28Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
