特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄、防尘盖,碳钢钢栓、传动条 Zinc alloy housing, handle and dust-proof cap, carbon steel cam and rod |
表面处理 Surface treatment | 镀白锌钢栓、传动壳组件 |
结构说明 Structure descriPTion | 旋转手柄可以实现门板的开启和关闭,密封条内和外都可以安装 Handle quarter-turn combines with rod latch system to open or close |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
手柄承载拉力值 Handle load tension capability | ≤225N |
手柄承载扭矩值 Handle load torque capability | ≤14N•m |

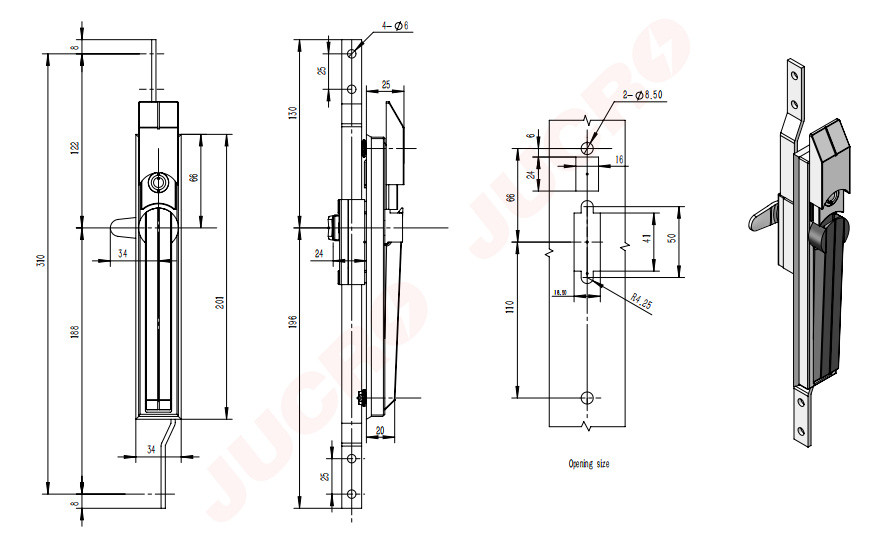

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
