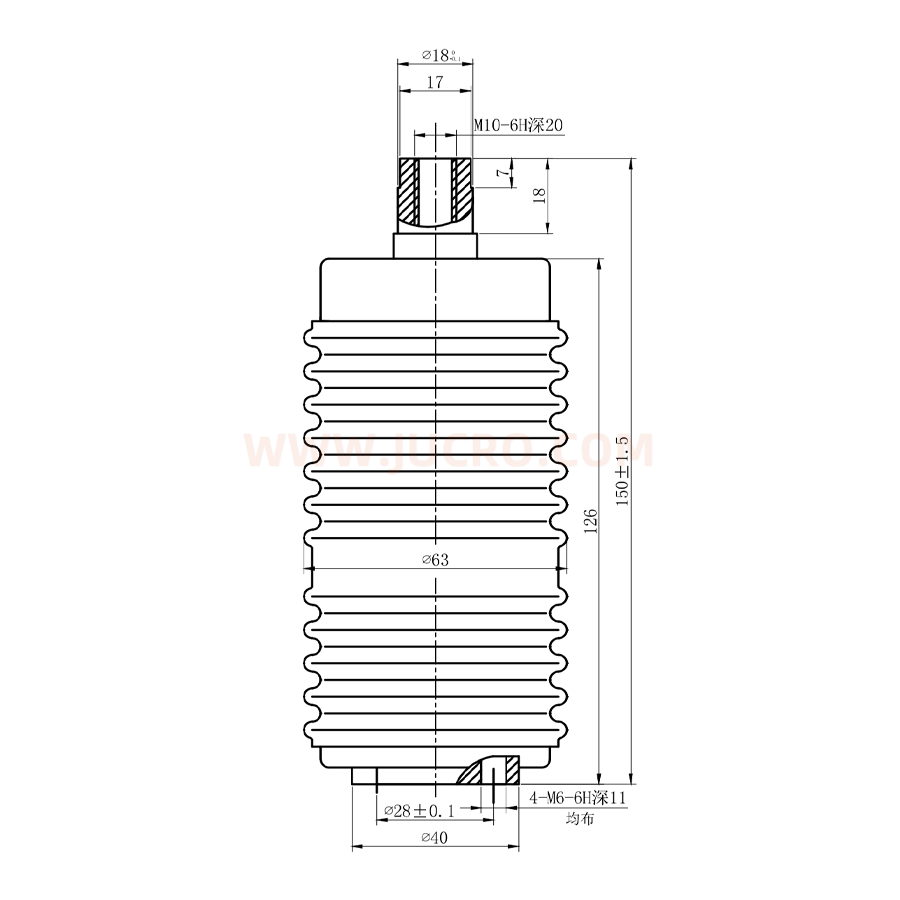

TF-12/630-20 (JUC702)

主要项目的技术参数 Main technical parameters

项目 Items	数值 Value
额定电压 Rated voltage	12KV
额定电流 Rated current	630A
额定频率 Rated frequency	50Hz
额定短时工频耐受电压(1min) Rated power frequency withstand voltage	42kV
额定雷电冲击耐受电压 Rated lightning impulse withstand voltage	75kV
额定短时耐受电流 Rated short time withstand current	20KA
额定峰值耐受电流 Rated withstand current(peak value)	50KA
额定短路关合电流(峰值) Rated short circuit making current(peak value)	50KA
额定闭环开断电流 Rated closed-loop breaking current	630A
额定有功负载开断电流 Rated aCTive load breaking current	630A
额定电缆充电开断电流 Rated cable charging breaking current	10A
额定短路持续时间 Rated duration of short circuit	4s
机械寿命 Mechanical life	10000 times
触头自闭力 Closing force due to bellows and atmosphere	70±20N
额定开距下触头反力 Force required to hold contacts opening at full stroke	120±30N
额定触头压力下限时的回路电阻 Circuit resistance at minimum contacts force	≤40μΩ
贮存期 Storage life	20 years
触头允许磨损厚度 Limiting abrasion of contacts	3mm

配用的真空负荷开关的机械参数 Mechanical requirements of vacuum load break switch

项目 Items	数值 Value
触头开距 Clearance between opening contacts	6±1 mm
平均分闸速度（触头闭合位置~75%开距） Average opening speed(Contacts closing position~75% contacts opening distance)	1.0±0.2 m/s
平均合闸速度(30%开距~触头闭合位置) Average closing speed(30% contacts opening distance~ contacts closing position)	0.6±0.2 m/s
额定触头压力 Rated contacts pressure	900±100 N
触头合闸弹跳时间 Contacts bouncing duration at closing operation	≤2 ms
触头分闸反弹幅值 Contacts re-bouncing clearance at opening operation	≤2 mm
三相同期性 Synchronism of three phases	≤1ms
