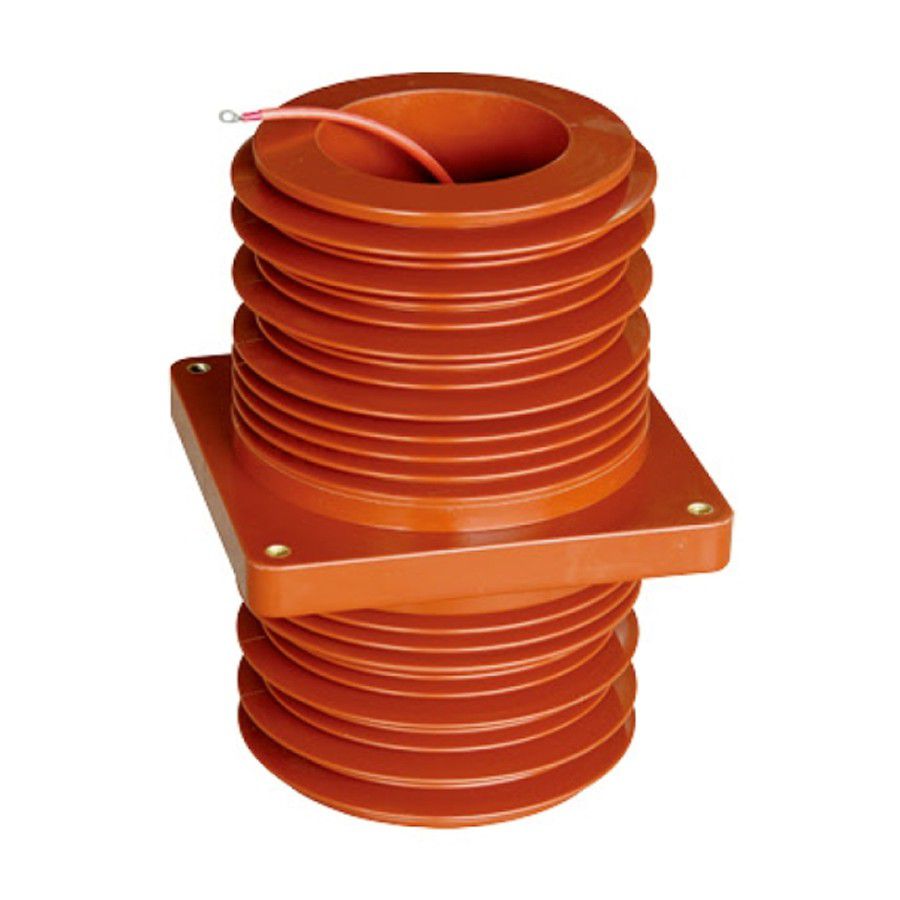

TG-40.5Q-260×420P
产品参数 Main technical parameter
|
Ordering code订货号 |
A |
B |
|
1553501 |
50 |
15 |
|
1553502 |
70 |
20 |
|
1553503 |
80 |
40 |
|
1553504 |
90 |
20 |
|
1553505 |
90 |
40 |
|
1553506 |
110 |
20 |
|
1553507 |
110 |
40 |
|
1553508 |
130 |
20 |
|
1553510 |
80 |
10 |
|
1553511 |
100 |
10 |
|
Item 项目 |
Data 参数 |
|
Rated voltage额定电压 |
40.5kV |
|
Power frequency withstand voltage工频耐压 |
95kV/1min |
|
Partial Discharge局放 |
28kv＜1pc |
|
Lightning impulse voltage雷电冲击电压 |
200kV |
|
Glass transition temperature玻璃化温度 |
≥105℃ |
|
Creepage distance爬电距离 |
>810mm |

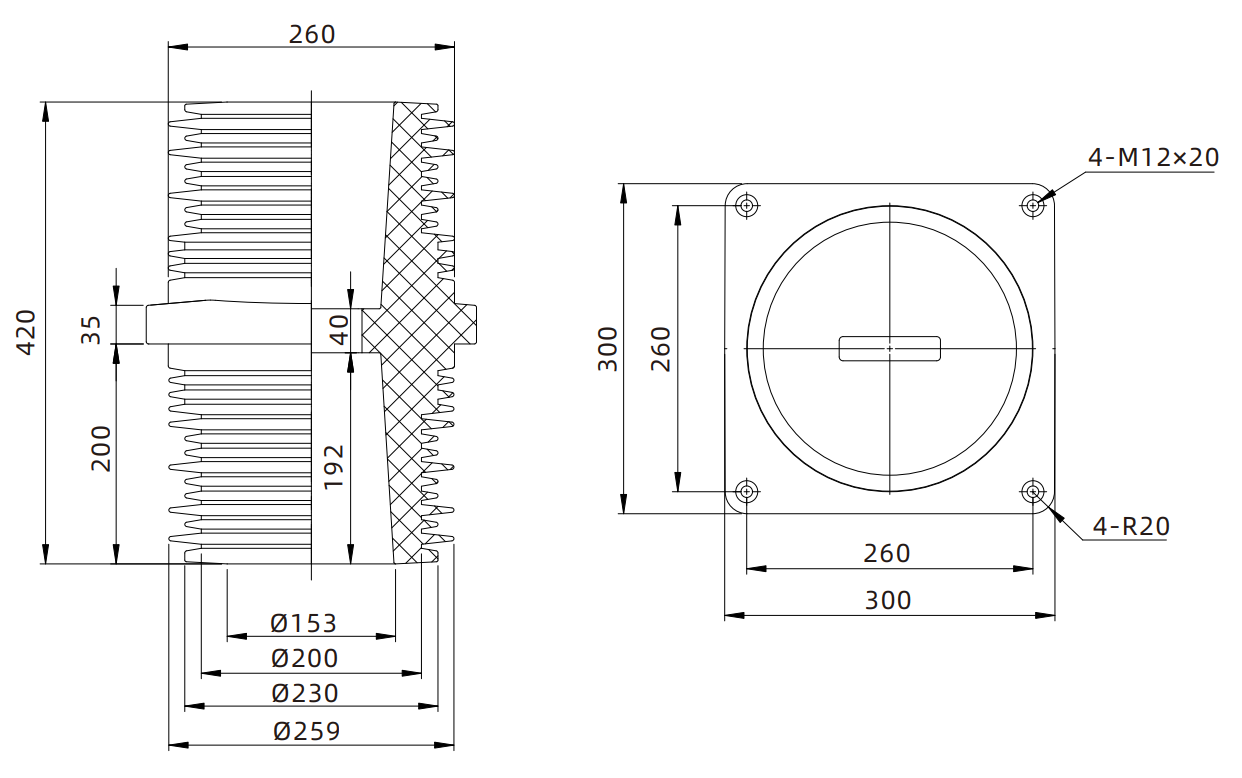

尺寸 Dimension
